As you probably know, the current version of iTunes is not compatible with Windows XP. Support for Windows XP (and Vista) was dropped when Apple released iTunes 12.2. The latest (and almost certainly last) version to support XP is 22.214.171.124 – this is an out-of-sequence release from September 2015 that adds support for iOS 9 devices but lacks Apple Music and other features added in iTunes 12.2 and 12.3.
The article below is targeted for advanced users. It presents several ways how to install iPhone, iPod Touch and iPad drivers on your machine running Windows XP 64 bit. We would like to say a special Thank you to Richard Simpson for creating the tutorial and to Yukichigai for setting the initial procedure.
Download iTunes v126.96.36.199 (64 bit) (for older video cards).
Using 7-zip or WinRAR, extract the contents of the iTunes installer
Edit AppleMobileDeviceSupport64.msi with Orca
Install AppleMobileDeviceSupport64.msi and ignore the unsigned driver warning
Install the QuickTime.msi shortcut
Plug in your iPhone, iPod Touch or iPad
Change the device driver for the iPhone in Device Manager

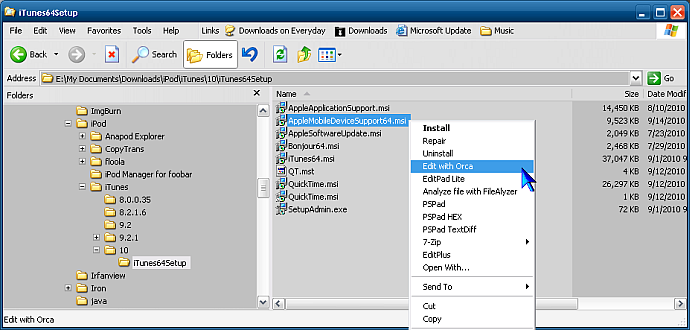

– Locate the extracted iTunes files, right-click “AppleMobleDeviceSupport64.msi” and select “Edit with ORCA”

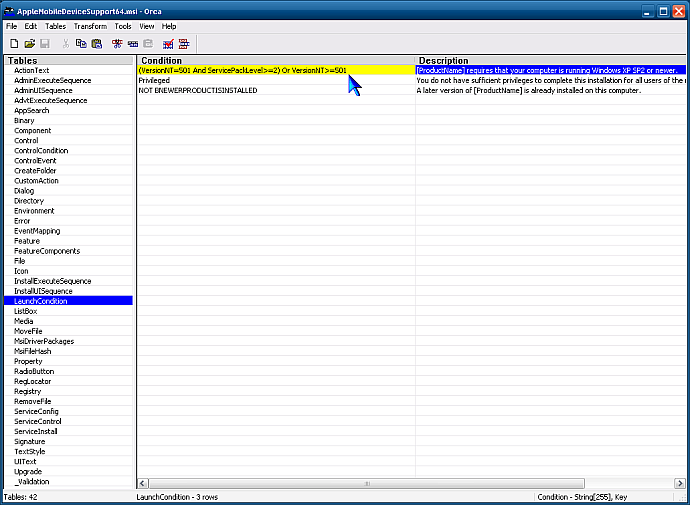

– In the left pane select “Launch Condition”, in the right pane select the condition:
“(VersionNT=501 And ServicePackLevel>=2) Or VersionNT>=600” and edit the 600 at the end with 501 so it reads like this: “(VersionNT=501 And ServicePackLevel>=2) Or VersionNT>=501”
– Save and Exit Orca. This is necessary to enable AppleMobileDeviceSupport64.msi to install in Windows XP 64-bit
– Create a shortcut of “QuickTime.msi”
– Right-click on it and select properties
– Add: -passive /promptrestart to the end of “Target”
(The complete target should look like:
“c:\MyLocation\SomeDir\QuickTime.msi” -passive /promptrestart. Please note that you should have a space after the .msi” and before the -passive /promptrestart)
– Open Device Manager, expand “Imaging Devices”, right-click the “Apple iPhone” entry and select “Properties”
– Select the driver tab, select and click the “Update Driver” button
– Select “No, not this time” when prompted to connect to Windows Update and click Next
– On the next screen, select “Install from a list or specific location” and click Next
– On the next screen, select “Don’t search…” and click Next
– The next screen should show you two entries, “Digital Still Camera” and “Apple Mobile Device USB Driver”. (or similar) Select “Apple Mobile Device USB Driver” and click Next
– On the next screen, select “Continue Anyway”
– On the next screen, select “Finish”

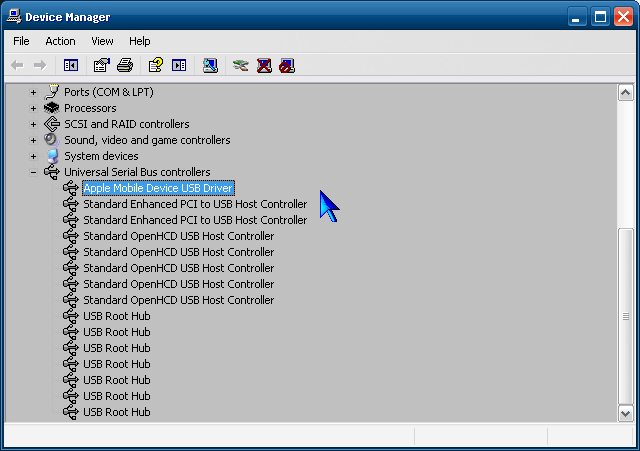

We had to do this step for each iPhone model; once for an iPhone 4 and once again for an iPhone 3GS. Repeating this step for an existing model phone will no longer show two driver selections but only the “Digital Still Camera”. But you can verify the iPhone is set up properly in Device Manager by expanding Universal Serial Bus controllers at the bottom of the list and seeing the first entry listed as “Apple Mobile Device USB Driver”.
